The Ozark Biomass Water Stove, is American made and durably built to endure the coldest of Alaskan winters.  These water stoves consist of a durable wood-burning fire box surrounded by water.  Being surrounded by water prevents burnouts.

     The Double Pass Flue runs horizontally through the water reservoir. Any wood stove or fireplace looses most of its heat through the flue; with this double pass flue system, the heat of the flue actually helps heat the water in the reservoir.  The automatic draft system keeps the water in the water tank at a constant 180˚.  This water makes heat readily available when your house calls for heat.  The water reservoir is surrounded, like a thermos, by a thick polystyrene insulation.  Hot water is pumped through an insulated pipe to a heat exchanger unit located in your heating ductwork or through an existing hot water system; radiant floor heat, or baseboard / radiator units.  Also, unlike a traditional wood stove or fireplace this system allows for a more constant heat, just as your gas or electric furnace does.

     The domestic hot water coil sits submerged in the water tank. Cold water comes in and hot water goes out.  This  gives you inexpensive continuous hot water.  You can take a 4 hour shower and still wash 20 loads of laundry with hot water to spare.

     Your Water Stove can heat your swimming pool or hot tub, most use what is called a shell and tube heat exchanger to do this they work great.  It can also be hooked to your clothes dryer to eliminate your heating element or gas burner in your clothes dryer.



OzarkBioMass 032a.jpg

Construction of stoves  Side wall, bottom and  top of water tank is 3/16 inch steel.  Tank ends are ¼ inch steel.  The Fire box is 1/4 inch steel.  The fire box and cleanout doors are insulated with refractory cement  to keep the heat in.   The doors all have 1 inch rope gasket to seal them.  The double pass Flue is a 4 X 12 steel tube.  It runs out of the back of the firebox to an easy to access  cleanout chamber in the back. It comes out of the cleanout chamber on the back and goes back to the front to the double wall stainless steel flue pipe on the top.

 The water tank has a two inch cleanout on the front and a four inch clean out on the back making it easy to maintain.

 The water tank is equipped with one extra domestic water coil or swimming pool port and depending on the model you choose multiple heat zones.



 We offer a condensation tank as an option so you hardly ever need to add water to the furnace.

 The stove in insulated with foam insulation to maximize efficiency.

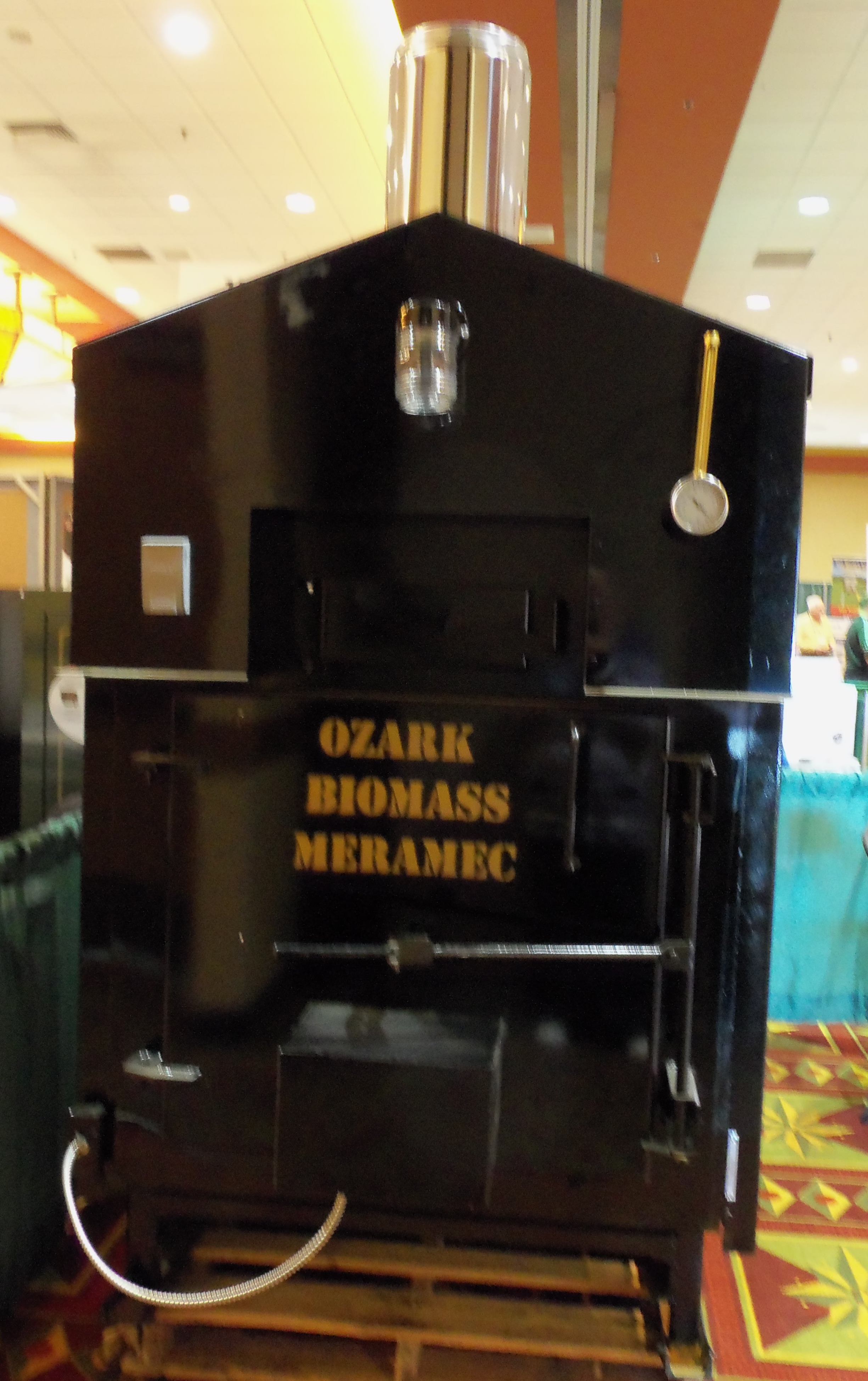

The Meramec Commercial



Door
Firebox
BTU
Weight
Water Capacity

Heat Zones

       30"x32"
28"x30"x36"
150,000
2,500 lbs.
295 Gallons

2



Will heat 3,500 square feet






The Gasconade Commercial

Door
Firebox
BTU
Weight
Water Capacity

Heat Zones

       30"x32"
28"x30"x48"
225,000 .
3,000 lbs.
469 Gallons

4


Will heat 8,000 square feet

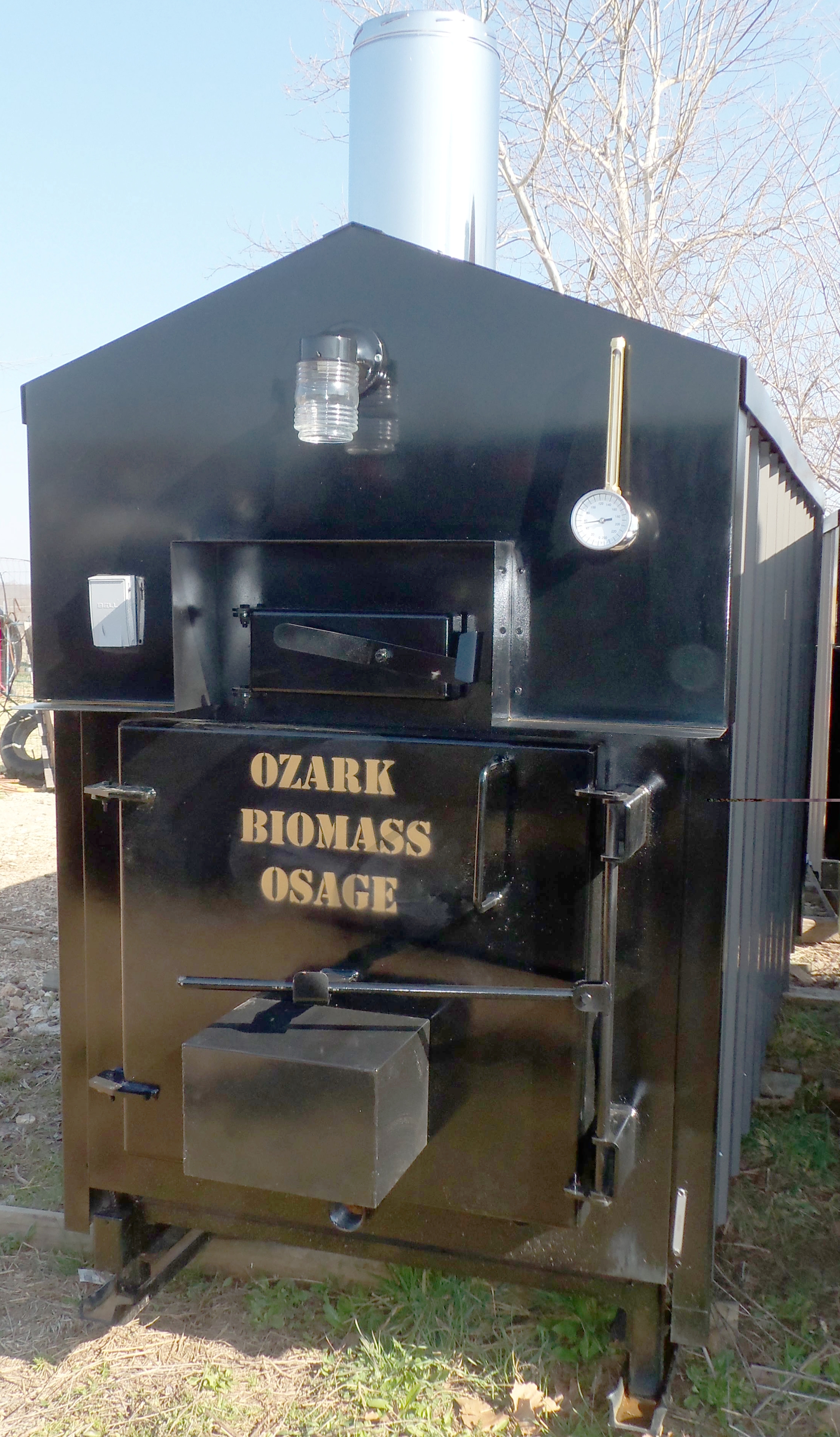

The Osage Commercial



Door
Firebox
BTU
Weight
Water Capacity
Heat Zones


30"x32"
28"x30"x60"
350,000
3,500 lbs.
575 Gallons
4




Will heat 12,000 square feet


Every unit comes standard with
outdoor light, thermostatically
controlled draft fan, temperature
 gauge and brass and glass site
 water level gauge (that is very
 easy to clean), and water treatment.
The Genesis Units come Standard with a shaker Grate System.


Install Kits  for the Ozark BioMass Renewable Energy Furnace



Biomass Kit   #1    50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp.

Biomass # 2 Kit

    50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp, water heater valve, and domestic water coil.












The Meramec Genesis



Door
Firebox
BTU
Weight
Water Capacity

Heat Zones

       30"x32"
28"x30"x36"
150,000
2,500 lbs.
295 Gallons

2

Coal Burner

Will heat 3,500 square feet







The Gasconade Genesis


Door
Firebox
BTU
Weight
Water Capacity

Heat Zones

       30"x32"
28"x30"x48"
225,000 .
3,000 lbs.
469 Gallons

4

Coal Burner
Will heat 8,000 square feet






The Osage Genesis


Door
Firebox
BTU
Weight
Water Capacity
Heat Zones


30"x32"
28"x30"x60"
350,000
3,500 lbs.
575 Gallons
4

Coal Burner
Will heat 12,000 square feet


                       OUR ECONOMY MODELS

                            Econo Outdoor Wood Furnace

The Econo Outdoor Wood Furnace is built of quality material by Missouri craftsmen in the USA.  The water tank is 11 gauge steel, the fire box is 9 gauge steel, with a 6 inch X ¼ inch flue pipe that runs vertical out the top of the fire box through the water tank then out to the atmosphere.

The Econo Outdoor Wood Furnace has a large firedoor to allow big pieces of wood to be burned without splitting.





The Econo 100  Commercial

Door
Firebox
BTU
Weight
Water Capacity
Heat Zones



24"x24"
24"x24"x36"
100,000 .
1,000 lbs.
100 Gallons
1

Will heat 1,800 square feet

This unit comes with water treatment, forced draft with automatic damper, aquastat controlled, digital temperature readout, & water level gauge.



Install Kits  for the Econo Furnace



Install Kit  #1  Pick Up $800.00

Shipped $950.00

    50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp.

Install Kit  #2   Pick Up $1000.00

Shipped $1,150.00

    50 foot insulated line, pump, flange kit, heat exchange coil, fittings, thermostat, relay, ground rod & clamp, water heater valve, and domestic water coil.















The Econo 200  Commercial





Door
Firebox
BTU
Weight
Water Capacity
Heat Zones


30"x36"
30"x36"x36"
150,000 .
1,300 lbs.
230 Gallons
1

Will heat 2,800 square feet

This unit comes with water treatment, forced draft with automatic damper, aquastat controlled, digital temperature readout, & water level gauge.









The Econo 100 Genesis



Door
Firebox
BTU
Weight
Water Capacity
Heat Zones


24"x24"
24"x24"x36"
100,000 .
1,000 lbs.
100 Gallons
1

Will heat 1,800 square feet

This unit comes with water treatment, forced draft with automatic damper, aquastat controlled, digital temperature readout, water level gauge, & shaker grate system.

Coal Burner






The Econo 200 Genesis



Door
Firebox
BTU
Weight
Water Capacity
Heat Zones


30"x36"
30"x36"x36"
150,000 .
1,300 lbs.
230 Gallons
1

Will heat 2,800 square feet

This unit comes with water treatment, forced draft with automatic damper, aquastat controlled, digital temperature readout, water level gauge, & shaker grate system.

Coal Burner
